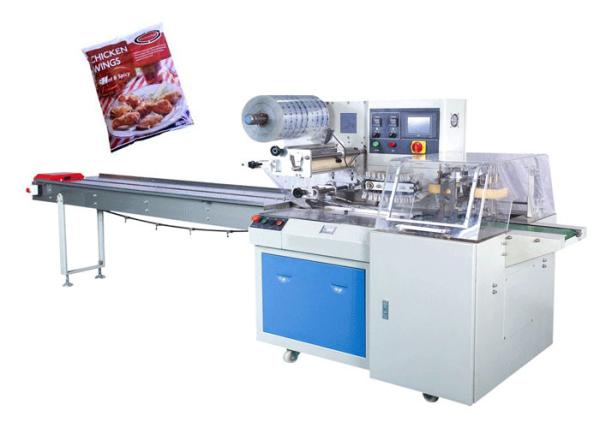

Chicken Wings Frozen Food Packaging Machine With Easy Operation
Feature:
Main performance and structure features:
1. Dual frequency conversion control ,bag length can be set and cut
in one step,saving time and films.
2. Colorful touch screen,easy and quick setting and operation.
3. Self diagnosis failure function,clear failure diaplay.
4. High sensitivity photoelectric eye color trace the bag,numerical
input of cutting sealing position for extra accuracy.
5. The temperature of each seal is independent. PID control is
suitable to various packaging materials.
6.Recoprocating type sealing device,filmer sealing,no wasting in
mould sealing cutter.
7.Teminal sealing device,more beautiful bag shape,improving
products level.
8. Positioning stop function without sticking knife, cutting and
wasting envelope.
9. Simple driving system,reliable working,convenient maintenance.
10. All controls are implemented by software. It can install
intermittent air device and spray alcohol device to implement
adjusting functions immediately and upgrading technology to ensure
it will never fall behind.
Applications
Suitable for packing regular objects such as frozen food, food with
tray, pallet products , etc .
Parameter:
| Model | JY-350W | JY-450W | JY-600W |
| Film width | 350mm | 450mm | 600mm |
| Bag length | 110-330mm | 120-450 mm | 120-450mm |
| Bag width | 30-160mm | 50-160mm | 50-200mm |
Product’s height | Max.70mm | Max.100mm | max.100mm |
Packing speed | 20-80bags/min | 20-80bags/min | 20-80bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 3.2KW | 220V 50/60HZ 3.6KW |
Machine dimension | 3670x820x1410 | 4380x870x1000 | 4380x970x1500 |
Machine weight | 800kg | 900kg | 1000kg |
Machine details of Chicken Wings Frozen Food Packaging Machine With Easy Operation:
Sample photos of Chicken Wings Frozen Food Packaging Machine With Easy Operation
Delivery of Chicken Wings Frozen Food Packaging Machine With Easy Operation
Our advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance
service.
