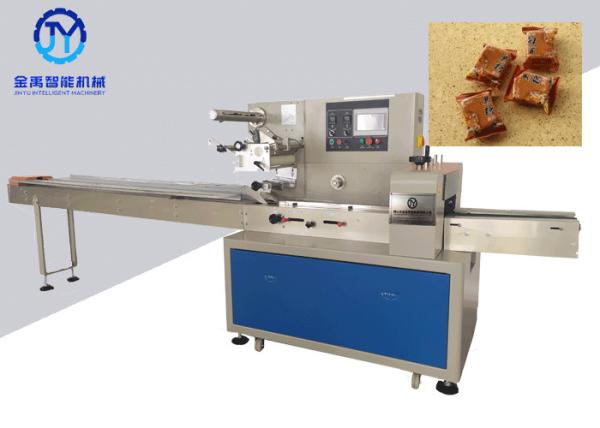

Automatic Sugar Cube Coal Cube Packaging Machine , Food Packaging
Machine
Feature:
1.It is time saving and film saving. Controlled by dual frequency
converter ,the bag is cut as soon as its length is set ,which make
the machine don't need to be adjusted to run.
2.Temperature independent PID control, more suitable for packaging
different materials.
3.High-sensitivity photoelectric eye color drag, cutting the
digital input of the sealed position, providing higher precision.
4.The machine can stop running at the fixed position, no sticking
to cut knives and no wasting films.
5.All controls implemented by the software, function adjustment and
technology upgrade is convenient , never backward.
6.Multipurpose packaging, suitable for various packaging to similar
type of product.
Specification:
| Model | 250E/S | 250B/D | 320B/D | 350B/D |
| Film width | Max.180mm | Max.250mm | Max.320mm | Max.350mm |
| Bag length | 50-115mm or 45-90mm | 65-190mm/90-280mm | 65-190mm/90-280mm 90-220mm/120-330mm | 65-190mm /90-280mm |
|
| 90-220mm/120-330mm | 90-220mm/120-330mm |
| Bag width | 30-80mm | 30-110mm | 50-160mm | 50-160mm |
| Product’s height | Max.35mm | Max.45mm | Max.55mm | Max.60mm |
|
| Packing speed | 60-330bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min |
|
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW |
| Machine dimension | 3770x670x1450 | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 |
|
| Machine weight | 500kg | 500kg | 550kg | 580kg |
|
Samples of Automatic Sugar Cube Coal Cube Packaging Machine , Food
Packaging Machine:
Company profile:
Foshan Jinyu Intelligent Machinery Co.,ltd is manufacturer company
of integrating design, production and sales. We are focusing on
production of the flow packaging machine and vertical packaging
machine, researching and developing automatic feeding and packing
system. For various customers, we meticulously offer installment
and testing and technology service.
Our products are in leading of home and abroad, which promotes the
development of industry. Our machines are widely using in food
industry, medical industry, hardware industry, chemical industry,
plastic industry, Agricultural products industry, daily necessaries
industry, etc. JINYU Intelligent Machinery has a certain Influence
and machines have been sold at home and abroad,
Our company pay attention to the cultivation of employees, R&D
and innovation of products. We have own-self R&D technology
team and spare parts production team, devote ourself to provide
packing solution program, and offer strongly after sales service
support. For home and aboard customers, we will offer installment
test and operation training to every client. Longlife maintainance.
